| High Power / Low Noise Exhaust Fans Here's the information you need to pick the best exhaust fan for your range hood. Exhaust Fan Sizing Guide Using one of the many available fan type/size combinations and a matching speed control switch, it's simple to get the exact air flow you need. All fans up to 1000 cfm are provided with an infinite switch. Fans 1400 cfm and larger are provided with 3 speed or heavy-duty infinite as required by the fan. Fan Types We offer 3 standard sizes of roof mount fans and several larger options. We also offer the same sizes in in-line fans. For in-hood fans, we offer sizes up to 3000 cfm, subject to fit-up limitations in any given hood. The roof mount fans and in-line fans are a bit quieter than the in-hood models, largely because the remote mounting puts the fan farther away. All fans are quieter when set at less than maximum speed, so it is a good idea to select a larger than needed fan and run it at less than full capacity. Precise Air Flow Locate your hood size, and then pick a fan that delivers at least that amount of air. You can then set the air flow needed using the speed control switch. Usually this will be the medium or low speed, which will be quieter than the top speed. Recommended Air Flows: Hood Wall Mount Hoods Island Hoods Length CFM CFM 30": 400 750 36": 500 900 42": 600 1025 48": 700 1200 54": 800 1350 60": 900 1500 66": 1000 1650 72": 1100 1800 Remote and In-Line Exhaust Fan Pricing Includes fan for remote or in-line mount and switch mounted in the hood. Fans up to 1000 cfm include infinite switch. Fans above 1000 cfm supplied with 3 speed or single speed switch standard as required by fan. Heavy duty infinite switches available for fans above 1000 cfm at additional charge. CFM Fan Capacity Price up to 600 600 $ 1050 600 - 1000 1000 $ 1225 1000-1400 1400 $ 1425 1400 -3000 available - custom quote In-Hood Exhaust Fan Pricing Includes blower and infinite switch mounted in hood CFM Fan Capacity Price up to 400 400 $1275 400 - 600 600 $1425 600 - 1000 1000 $1625 1000 - 1400 1400 $1825 1400 -3000 available - custom quote Note: The largest in-hood fans may not fit into the smallest hoods. Please select from the remote or in-line fans in these cases. Switches and Infinite Controls We provide switches and controls matched to work with the exhaust fan you choose. Infinite controls are ther best choice for fans up to 1000 cfm because the electronic control is compact and fits easily into the hood. For fans lareger than 1000 cfm, the infinite control is generally large and bulky and thus difficult to install in the hood. We usually recommend a standard 3-speed control for larger 3-speed fans. For larger single speed fans, we provide a compact single speed switch, or we can provide a heavy duty solid state motor speed control. |
 |

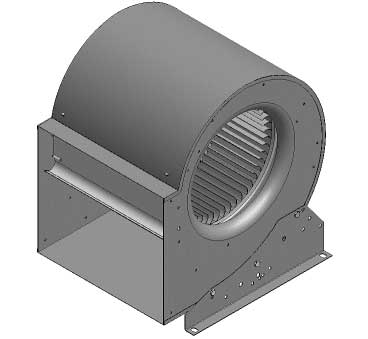

| Exhaust Fans for In-Hood Mount Extra Quiet Long-life blowers Out-of-sight mounting behind filters Available blower capacities 200, 400, 600, 1000, 1200, 1400, 1800 cfm |
 |
 |
 |

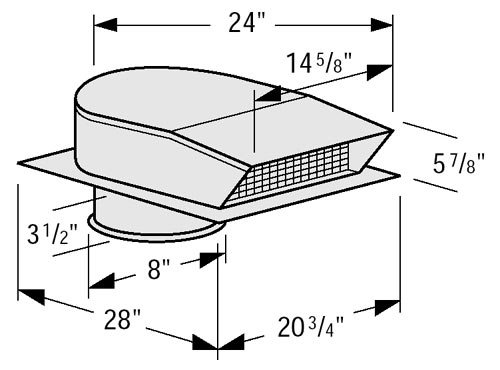

| 600 CFM |

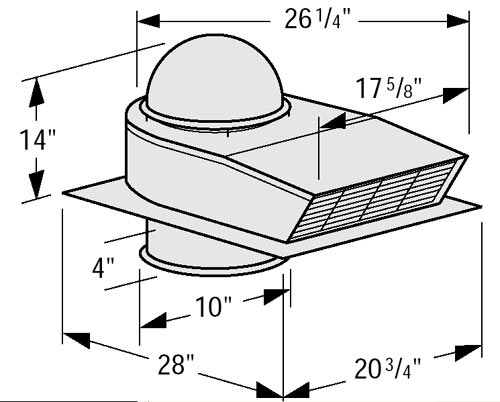

| 1400 CFM |

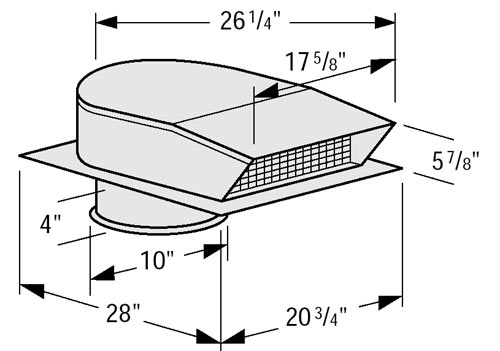

| 1000 CFM |
| Copyright 2003-2004 Handcrafted Metal, Inc. All Rights Reserved |
| In-Line Exhaust Fans Extra Quiet Long-life blowers Mount in the attic in-line in the duct run Available blower capacities: 400, 600, 1000, 1200, 1400, 1800, 2400, 3000 cfm |
| Roof and Wall Mount Exhaust Fans Extra Quiet Long-life blowers Out-of-sight mounting behind filters Available blower capacities 200, 400, 600, 1000, 1400, 1800, 2400, 3000 cfm |
 |
 |
| 300-800 cfm in-line fans |
| 800-3000 cfm in-line fans |
 |
 |

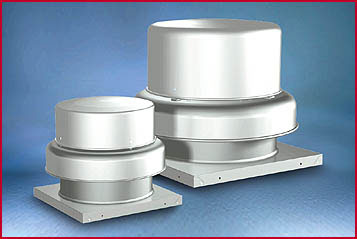

| 1400 - 3000 CFM Down Discharge Fans |

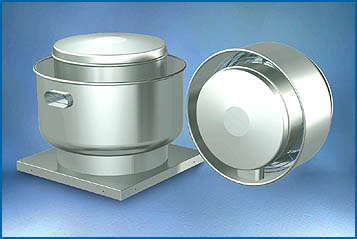

| 1400 - 3000 CFM Upblast Discharge Grease Rated Commercial Fans |
| Handcrafted Metal |
 |
| Uncompromising Design and Craftsmanship |
| Exhaust Fans |
 |
